DTC400e Card Printer/Encoders



PRODUCT DOCUMENTS

The DTC400e is designed to give your organization exactly what it needs: a professional, modular card printing system that's versatile and easy to use.
Dual- or single-sided Direct-to-Card printing of photos, bar codes and digital signatures.
An all-in-one ribbon cartridge combines the printer ribbon and card cleaning roller into one cartridge, eliminating the hassle of hard-to-load ribbons, separate card cleaning mechanisms and confusing indicator lights.
Optional DTC400e modules encode data onto contact and contactless smart cards, proximity access control cards and magnetic stripe cards.
Share your DTC400e in a network setting using the optional Ethernet or internal print server.
Ideal for small- to mid-sized businesses, K-12 schools, regional and local government agencies, membership and loyalty clubs, events and more.


KEY FEATURES

The DTC400e is designed to give your organization exactly what it needs: a professional, modular card printing system that's versatile and easy to use. Top ^

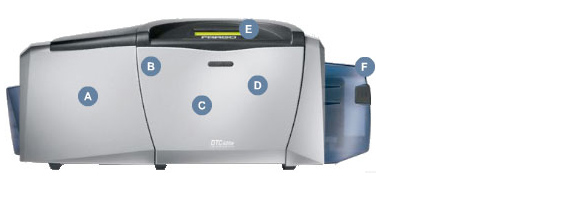

Everything about the DTC400e printer/encoder is designed to make ID card issuance simple, secure and virtually maintenance free. The printer ribbon and card cleaning roller load in one easy step. The LCD control panel tells you what’s going on, and what you need to do about it. And a wide range of options let you adapt the DTC400e to your changing security needs.

A
Dual-sided printing lets you make ID cards more informative by printing larger photos on the front and more text on the back.
B
Make your ID cards more versatile by adding smart card and access control capabilities. Optional DTC400e modules encode data on to contact and contactless smart cards (such as HID iCLASS® technology), proximity access control cards and magnetic stripe cards.
C
Simplify operator training and eliminate the expense and downtime of torn ribbons with the SmartLoad ribbon cartridge.
D
Reduce maintenance and maintain print quality with the integrated self-cleaning SmartClean roller.
E
Reduce downtime, operator errors and training costs by constantly knowing printer status through the SmartScreen LCD control panel.
F The versatile DTC400e prints standard thickness cards plus thin (9 mil) cards for mailing, attaching to a medical chart or slipping into a billfold. It also prints rewritable cards that help reduce the waste of use-then-trash cards such as visitor badges.

Optional dual-sided printing
Dual-sided printing doubles the printable area of your ID cards. That means you can put larger photos on the front, and additional information, bar codes and digitized signatures on the back. Dual-sided printing can also make cards harder to counterfeit.

Optional smart card encoding
Comprehensive security applications frequently combine photo IDs with some type of technology or "smart" cards. With optional modules, Professional Series printer/encoders can encode up to three smart card technologies in one pass: contact and contactless smart card, magnetic stripe, and proximity card

SmartLoad™ ribbon cartridge
The DTC400e takes the hassle out of handling printer supplies. Its SmartLoad ribbon cartridge combines the printer ribbon and card-cleaning roller into one disposable unit. Just slide in the cartridge, close the door and you're done. No feeding or tearing ribbon rolls, no fumbling with separate cleaning rollers.

Top ^
SPECIFICATIONS


Printing technology:
Dye-sublimation / resin thermal transfer

Resolution:
300 dpi (11.8 dots/mm) continuous tone
Resolution:
300 dpi (11.8 dots/mm) continuous tone
Colors:
C30e: Up to 16.7 million / 256 shades per pixel
M30e: Monochrome; seven ribbon colors available
Print speed:
7 - 35 seconds per card, depending on ribbon type
Accepted standard card sizes:
CR-80 (3.375"L x 2.125"W / 85.6mmL x 54mmW)
CR-79 Adhesive Back (3.313"L x 2.063"W / 84.1mmL x 52.4mmW)
Print area:
CR-80 edge-to-edge (3.36"L x 2.11"W / 85.3mmL x 53.7mmW)
CR-79 (3.3"L x 2.04W / 83.8mmL x 51.8mmW)
Input card cartridge capacity:
100 cards (.030" / .762mm thick)
Output hopper card capacity:
Up to 30 cards (.030" / .762mm thick)
Encoding Options:
ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2, and 3
Raw (user configurable) encoding of ISO magnetic stripe
JIS II Magnetic Stripe Encoding
Contact Smart Card Docking Station
Contactless Smart Card Encoder (HID® iCLASS®, MIFARE® and MIFARE DESFire)
Contact Smart Card Encoder reads from and writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards (T = 0, T = 1) as well as synchronous cards
Prox card reader (HID read-only)
